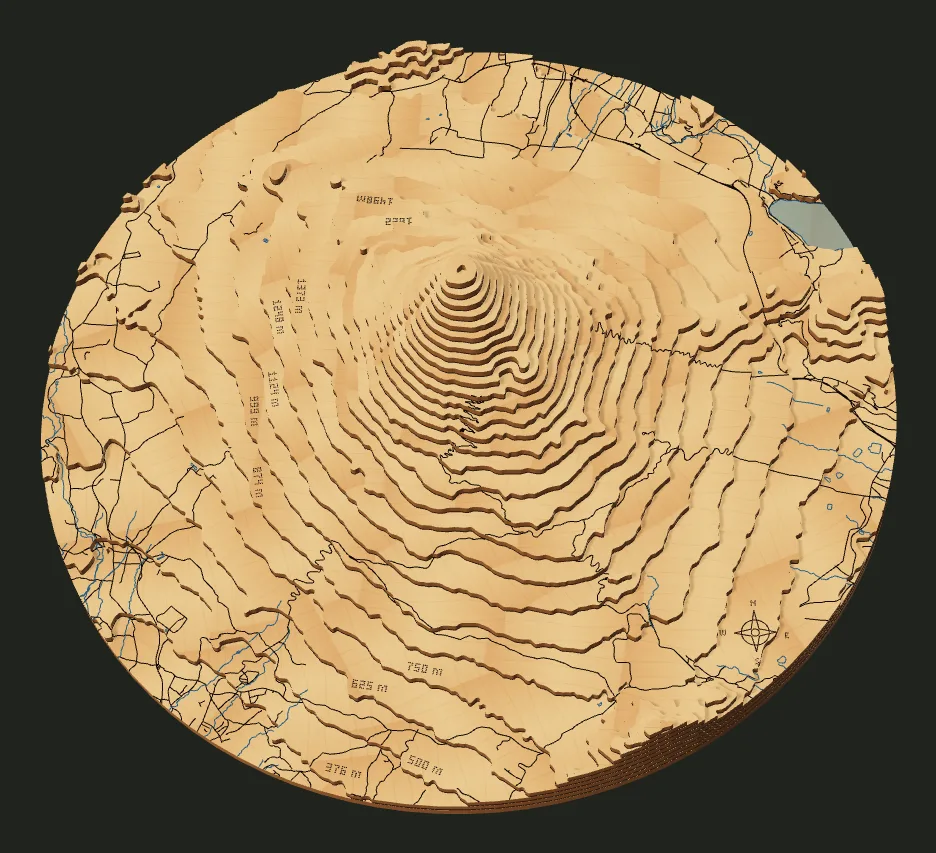

The project
| Cut size | 300 mm (11.8 in) circle |
|---|---|
| Material | 3.175 mm (1/8 in) sheets |
| Vertical exaggeration | 2.5× |
| Elevation range in the frame | 3,491 m |
| Layers | 28, 88.9 mm (3.5 in) tall |
Why these settings
- Evenly spaced contours on a symmetrical cone make each layer a slightly smaller ring, which reads clearly from across a room.
- Fuji’s lower slopes are gentle, so a 2.5× exaggeration gives the cone a clear profile. A circle centered on the crater matches its shape.
Make it yourself
- Download the project file. It holds the map area and every setting above.
- Open the studio and choose Import project JSON next to the project name.
- Select Generate terrain. Fresh data can change the layer count slightly from the one listed here.
- Check the cut layers and 3D preview, then open Export for the SVG cut panels and assembly guide.
To change it, set your own sheet thickness in Terrain layers or a new size in Cut size; the studio recalculates the layers. The layered map guide covers kerf, nesting and assembly, and the engraving guide shows how to make the same place as a flat engraving.
